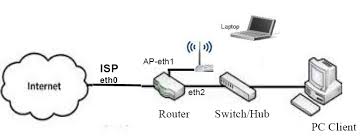

Hasil gambar untuk simulasi jaringan ukk tkj 2016



Motode Kelompok
Ø CARA MENGUBAH NAMA INTERFACES
Perintah nya:
]>ip interfaces set 0 name=1modem
Ø CARA MEMBUAT IP ADDRESS
perintah nya :
]>ip address add address=192.168.200.26/24 interfaces=3wlan

Ø CARA MEMBUAT IP DHCP-SERVER SETUP
Perintah nya :
]>ip dhcp-server setup


Ø CARA MEMBUAT IP DHCP-SERVER MANUAL
~Pertama Kita Buat dulu range nya
Perintah nya:
]>ip pool add name=dhcp-pool ranges=192.168.200.27-192.168.200.100/24
~kedua kita buat dhcp-server dan gateway nya.
Perintah nya:
]>ip dhcp-server network add address=192.168.200.0/24 gateway=192.168.200.1
~ketiga kita aktifkan dhcp-server nya
Perintah nya:
]>ip dhcp-server add interfaces=3wlan address-pool=dhcp-pool enable=0
Ø CARA SET  IP DNS SERVER
Perintah nya:
]>ip dns set servers=192.168.43.1 allow-remote-request=yes
Ø CARA MENAMBAHKAN IP ROUTE
Perintah nya:
]>ip route add gateway=192.168.43.1
Ø CARA MEMBUAT IP FIREWALL NAT
Perintah nya:
]>ip firewall nat add chain=srcnat out-interfaces=1modem action=masquerade
Ø CARA BLOK SITUS DAN FILE
Perintah nya:
]>ip proxy set enable=yes port=8080 parent-proxy=0.0.0.0 cache-administrator=nopryadi@gmail.com cache-on-disk=yes

Ø ]>ip proxy accsess add src-address=192.168.200.0/24 dst-host=*linux* action=deny
Ø ~setelah itu kita buat firewall untuk blok situs nya:
Ø ]>ip firewall add chain=dstnat protokol=tcp port=80,3128,8000 action=redirect to-ports=8080

Ø CARA BLOK FILE
]>ip proxy accsess add path=*mp3* src-address=192.168.200.0/24 action=deny


Ø CARA MEMBUAT FIREWALL YANG MEMBLOKIR AKSES INTERNET MENGGUNAKAN WAKTU
~Pertama kita set dulu ntp client nya
]>system ntp client set enable=yes primary-ntp=203.34.118.4 secondary-ntp=203.114.224.252
Ø ~Kedua kita set ntp server nya
]>system ntp server set enable=yes broadcast=yes
Ø ~ketiga kita set time-zone-name
]>system clock set time-zone-name=Asia/Jakarta
Ø ~Keempat kita buat scheduler
]>system scheduler add name=enable start-date=feb/10/2016(sesuaikan dengan tanggal sekarang) start-time=19:00:00
Ø ]> system scheduler add name=disable start-date=feb/10/2016(sesuaikan dengan tanggal sekarang) start-time=07:00:00
Ø ~Kelima kita buat firewall filter nya
]>ip firewall filter add chain=forward src-address=192.168.200.0/24 out-interfaces=1modem actoin=drop
Ø SELAMAT MENCOBA !!!!!
Metode Jaka Private

1.interfaces

Interfaces set 0 name=1modem
Interfaces set 1 name=2Lan
Interfaces set 2 name=3Wifi
interfaces print
Lihat hasilnya

2.ip address
Ip address add address=192.168.1.25/24 interfaces=1modem
ip address add address=192.168.100.1/24 interfaces=2Lan
ip address add address=192.168.200.1/24 interfaces=3Wifi
Ip address print
Lihat hasilnya

3.ip dns
Ip dns>print
ip dns>set server=192.168.1.1 allow-remote-requenst=yes
ip dns>print
Lihat hasilnya

4.ip route
Ip route print
ip route add gateway=192.168.1.1
ip route print
5.ip firewall nat
Ip firewall nat add chain=srcnat out-interfaces=1modem action=masquerade
6.ip dhcp-server
Ip dhcp-server setup (2Lan “rangenya ubah ip paling belakang menjadi 100”)
ip dhcp-server setup(3Wifi “rangenya ubah ip paling belakang menjadi 100”)

7.ip pool print

Cth: Ip pool set 0 ranges= 192.168.100.26-192.168.100.100

8.ping google.com

Kalau perlu Mikrotik di reboot!!

9.ip proxy
1.Ip proxy>print
ip proxy> set enable=yes src-address=0.0.0.0 port=8080 parent-proxy=0.0.0.0
             cache-administrator=mustintkjzakaria@gmail.com cache-on-disk=yes
ip proxy>print
Lihat hasilnya

2. + ip proxy access add src-address=192.168.200.0/24 dst-host=*linux* action=deny redirect-to=debianzakariamustin.blogspot.co.id
   +ip proxy access add src-address=192.168.200.0/24 path=*mp3* action=deny
10.ip firewall nat add chain=dstnat

+ Ip firewall nat add chain=dstnat protocol=tcp port=8080 action=redirect to-port=8080
+ ip firewall filter add chain=forward src-address=192.168.200.0/24 out-interfaces=1modem


11.ping google.com
            Kalau Perlu Reboot
12.
Ø CARA MEMBUAT FIREWALL YANG MEMBLOKIR AKSES INTERNET MENGGUNAKAN WAKTU
~Pertama kita set dulu ntp client nya
]>system ntp client set enable=yes primary-ntp=203.34.118.4 secondary-ntp=203.114.224.252
Ø ~Kedua kita set ntp server nya
]>system ntp server set enable=yes broadcast=yes
Ø ~ketiga kita set time-zone-name
]>system clock set time-zone-name=Asia/Jakarta
Ø ~Keempat kita buat scheduler
]>system scheduler add name=enable start-date=feb/10/2016(sesuaikan dengan tanggal sekarang) start-time=06:00:00 "Waktu Hidup Connecting Internet"
Ø System scheduler edit numbers=0 on-event enter
s                          (/ip firewall filter enable numbers=0)
Ø
Ctrl + O
system scheduler print
]> system scheduler add name=disable start-date=feb/10/2016(sesuaikan dengan tanggal sekarang) start-time=07:00:00 "Waktu Mati Connecting Internet"
Ø System scheduler edit numbers=1 on-event enter
                            (/ip firewall filter enable numbers=1)
Ø
Ctrl + O
System scheduler print

Coba test di client hostspot android dan client pc ip automatic dynamic

Jangan terlalu fokus pada gambar fokuslah pada tulisan perintah

Create :
          1.Muhammad Zakaria Mustin
          2.Nopriadi
          3.Eri Marzoni
          4.Dodi Yusuf Libis
          5.Rama Taruna
